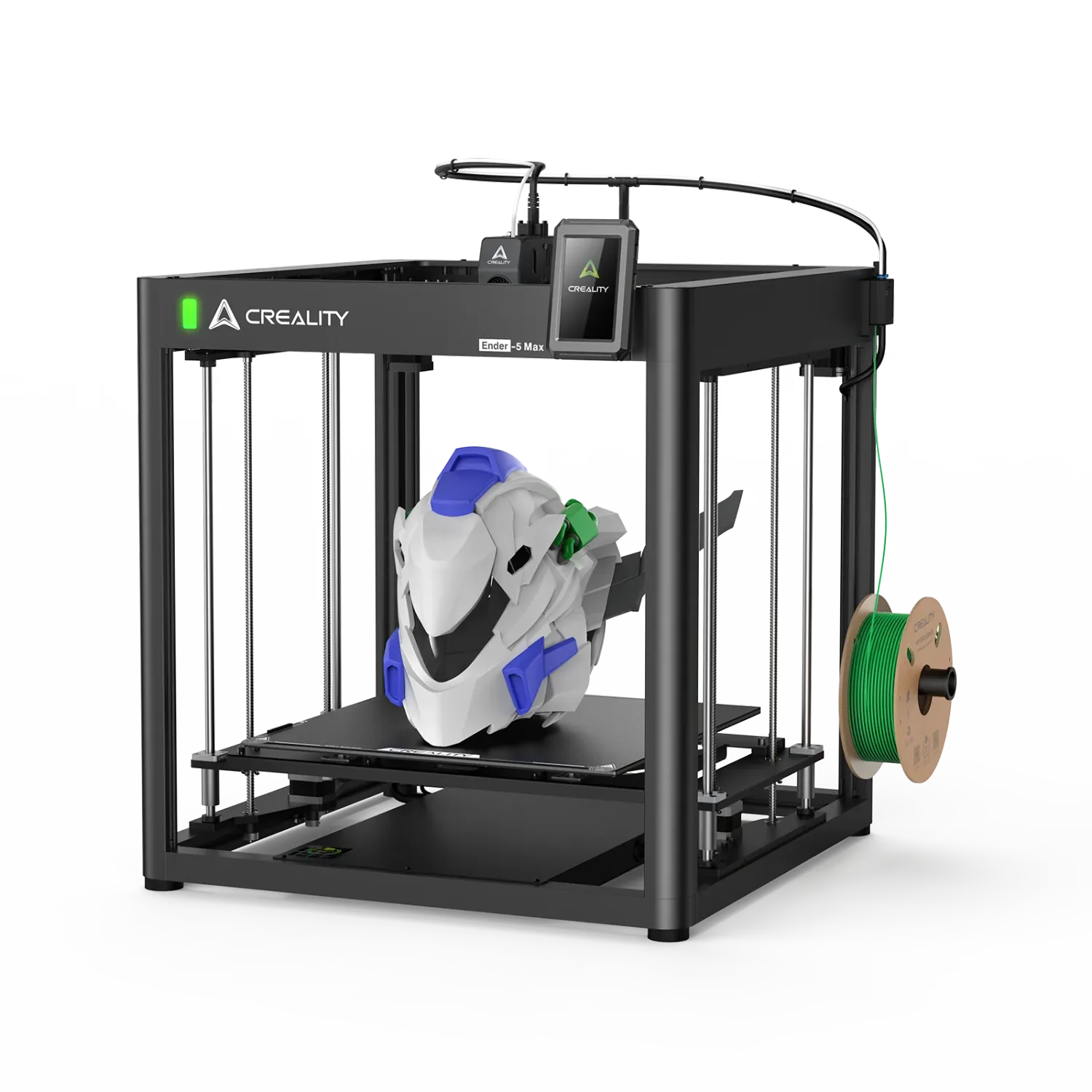

Creality Ender 5 Max 3D Printer

The Creality Ender 5 Max is designed for those who need fast, precise, and large-scale 3D printing. With an auto bed leveling system, a strong frame, and a huge build volume, this printer makes large projects and batch printing easier. It combines high-speed performance with the reliability needed for consistent results.

Highlights

Auto Bed Leveling for Consistent First Layers

One of the standout features of the Ender-5 Max is its 36-point fully automatic bed leveling system. This ensures that the first layer is perfectly even every time, so you can start printing without worrying about adjustments.

Solid and Precise Construction

The frame of the Ender-5 Max is built with robust, die-cast aluminum alloy parts, providing the stability needed for high-quality prints. The X-axis features a precise linear rail, allowing smooth movement without any deviation. This setup ensures that prints are stable and accurate.

Dual Z-Axis Motors for Extra Precision

To improve print quality, the Ender-5 Max is equipped with two independently motorized Z-axes, each supported by linear rods. This setup allows the printer to handle larger loads, supporting models up to 10kg, while maintaining precision in the Z-axis movement

High-Speed Printing

For those who need speed, the Ender-5 Max can print at speeds up to 700mm/s, with a maximum acceleration of 20,000mm/s². This makes it one of the fastest printers in its class, without sacrificing the quality of the prints.

Large Build Volume

With an impressive 400x400x400mm build volume, the Ender-5 Max can handle both small batch printing and larger models. Whether you’re printing multiple parts or a single large model, the Ender-5 Max provides the space you need.

Fast Heating and Efficient Power Use

The Ender-5 Max is equipped with a 1000W heatbed that heats up to 80℃ in just 200 seconds. This allows you to get started faster and spend less time waiting for the bed to reach the right temperature. The new epoxy build plate requires a lower temperature for optimal adhesion, making it more power-efficient and easier to retrieve finished prints.

User-Friendly Features

The Ender-5 Max is equipped with a tri-color status indicator light, visible from up to 10 meters, so you always know the printer’s status. Green means it’s running, orange means it’s in standby, and red means there’s an error. Additionally, the printer offers Wi-Fi connectivity for easy file transfers and has a built-in 8 GB internal memory to store more files for your prints.

Optional Accessories

If you need more features, the Ender-5 Max is compatible with optional accessories like the official enclosure kit, which helps maintain a higher temperature for more demanding filaments, and an AI camera for real-time monitoring and time-lapse photography. The printer also supports Hyper PLA filaments, which provide better fluidity and faster cooling.

The Ender-5 Max offers a reliable, high-speed 3D printing experience with the capability to handle large projects and batch printing. Whether you're looking to print faster or need more space for bigger models, the Ender-5 Max delivers consistent results.

• Pro-level Print Quality: It offers a rigid all-metal frame and a 64-point auto bed leveling system.
• Ultra-fast Printing: Achieves a speed of 700 mm/s with CoreXY technology for faster printing.
• Enormous Build Volume: Provides a 400 mm³ build volume, allowing for larger prints.
• Tailored for Print Farm: Includes multi-printer management via WLAN and a tri-color indicator light.
• Optional Enclosure: Helps maintain a higher ambient temperature, ideal for printing with engineering filaments.

This setup emphasizes efficiency, reliability, and performance in 3D printing.

Robust Frame and High-Precision Linear Rail

Built with reinforced die-cast aluminum alloy, the upgraded frame delivers exceptional strength and stability. A precision-engineered linear rail on the X-axis ensures smooth, accurate motion with minimal deviation, enabling consistently high-quality prints every time.

The Ender-5 Max is equipped with dual independently driven Z-axes, each featuring a pair of leadscrews and supported by two precision linear rods. This robust setup ensures smooth, stable movement, easily handling models up to 5 kg without compromising print quality. Say goodbye to layer shifts and unwanted layer lines for consistently flawless prints.

Durable, High-Performance Extruder for Continuous 24/7 Printing

Engineered with dual hardened steel gears, the extruder is built to last, proven through 500 hours* of rigorous durability testing. Designed for nonstop, reliable extrusion, it ensures uninterrupted 24/7 production with minimal need for maintenance or inspection.

Global Voltage Compatibility with Built-in Safety

The Ender-5 Max is engineered for worldwide use, supporting a wide input voltage range of 100V to 240V. It automatically adapts to local voltages without the need for manual switching, ensuring smooth and stable performance wherever you are. Plus, with dual safety fuses integrated into the heatbed, you get enhanced protection for both your equipment and your workspace.

Blazing Speed for Maximum Productivity

The Ender-5 Max redefines fast printing, standing out even among CoreXY 3D printers. Equipped with powerful 42-76 stepper motors on both the X and Y axes, it delivers exceptional movement precision and strength. Achieve lightning-fast print speeds of up to 700 mm/s, drastically reducing production time and boosting your workflow efficiency.

Additional Features

• Tri-colour printer status display,
• 1000 watt heating bed that heats up to 80 °C in just 200 seconds,
• Flexible epoxy printing plate requires a lower temperature for reliable adhesion (from 45 °C),
• Operating temperature 5–40 °C,
• Supports 100–240V input voltage,
• Built-in double safety fuses on the heated bed,
• Automatic loading and unloading of filaments,
• Active Input Shaping reduces vibrations,
• Silent mode with ≤55 dB volume.

Technical Specs - Ender-5 Max 3D Printer
